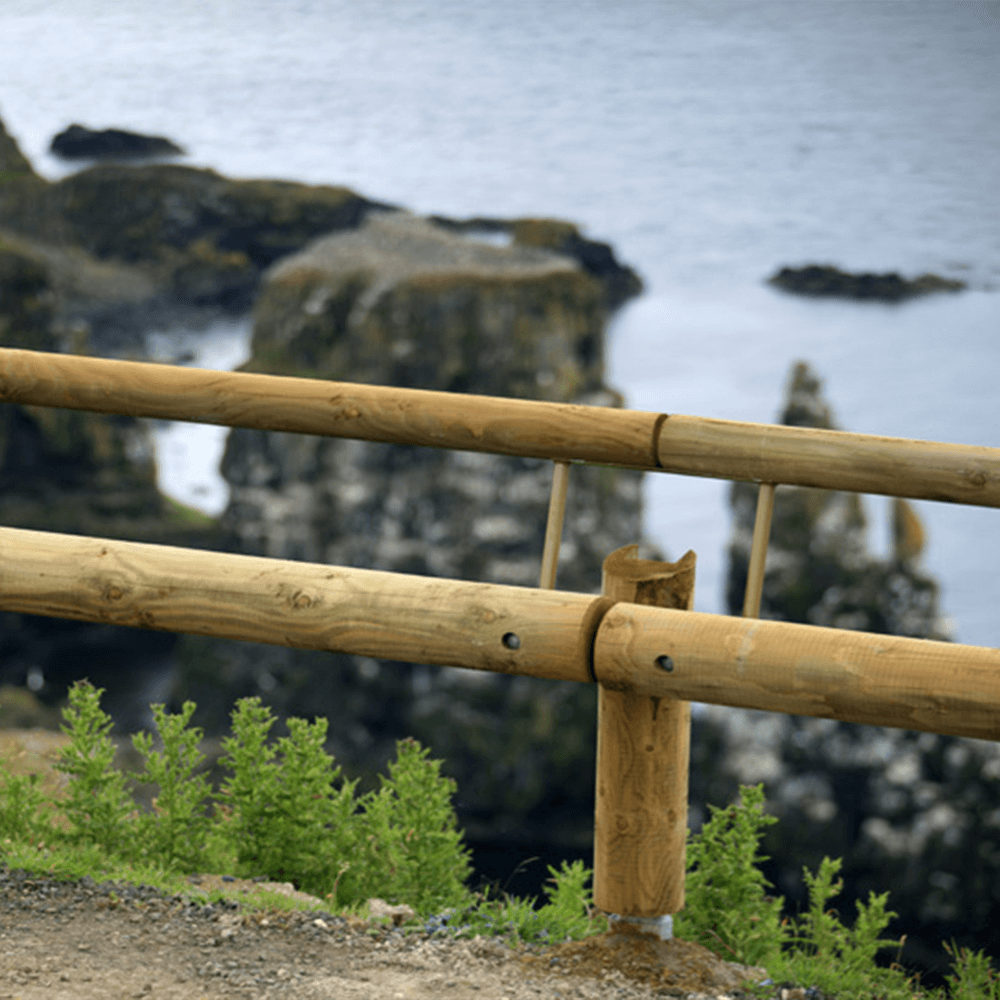

Type 7 System – TimberRail Eco: 760mm High Excavated Posts (Single Rail with additional handrail option)
Emtek’s range of Timber Safety Barrier products are designed to provide a more aesthetic design, particularly in conservation zones and areas of outstanding natural = beauty. Manufactured from high grade steel, they are clad with specialist timber to give an EN: 1317 complaint barrier, capable of withstanding vehicle impacts of up to 70MPH. A full range of barriers, pedestrian handrails and terminals are available.
Key Features
• Emtek TimberRail Eco single rail composite steel and timber safety barrier on excavated post 760mm high placed at post centres ranging from 2000mm – 4000mm centres
• Containment levels range from N1, N2 and H2
• Working widths of W3-W7
• Post foundations: 350mm diameter x 600mm deep
• ST5/C25 concrete
• All barrier components manufactured and designed under quality assured system with steel post and impact rails hot dip galvanised to BS EN ISO 1461
• Timber selected from sustainable, managed forests, with a pressure treated finish giving a 10 year guarantee.
• Tested to meet the requirements of EN1317
